Tibber Streaming Anomaly Detector

, , , , , ,

Ever wondered what’s really happening with your home’s energy consumption at night? Or why your electricity bill suddenly spiked last month?

Your smart meter knows everything—every watt, every spike, every pattern. But that data is locked away in vendor apps, making it nearly impossible to analyze, detect anomalies, or build custom alerts.

I built a real-time streaming platform to solve this. It continuously ingests energy data from Tibber Pulse, uses machine learning to detect unusual patterns, and stores everything for long-term analysis.

Anomaly Detection Dashboard - EV Charging Session

The dashboard above shows an EV charging session (5:00 AM to 6:00 AM) detected in real-time:

  • Green line: Real-time power consumption
  • Red line: Anomaly score calculated by Random Cut Forest algorithm
  • When charging starts, power consumption spikes and anomaly score rises above the threshold
  • The system automatically flags this unusual pattern

Architecture Overview

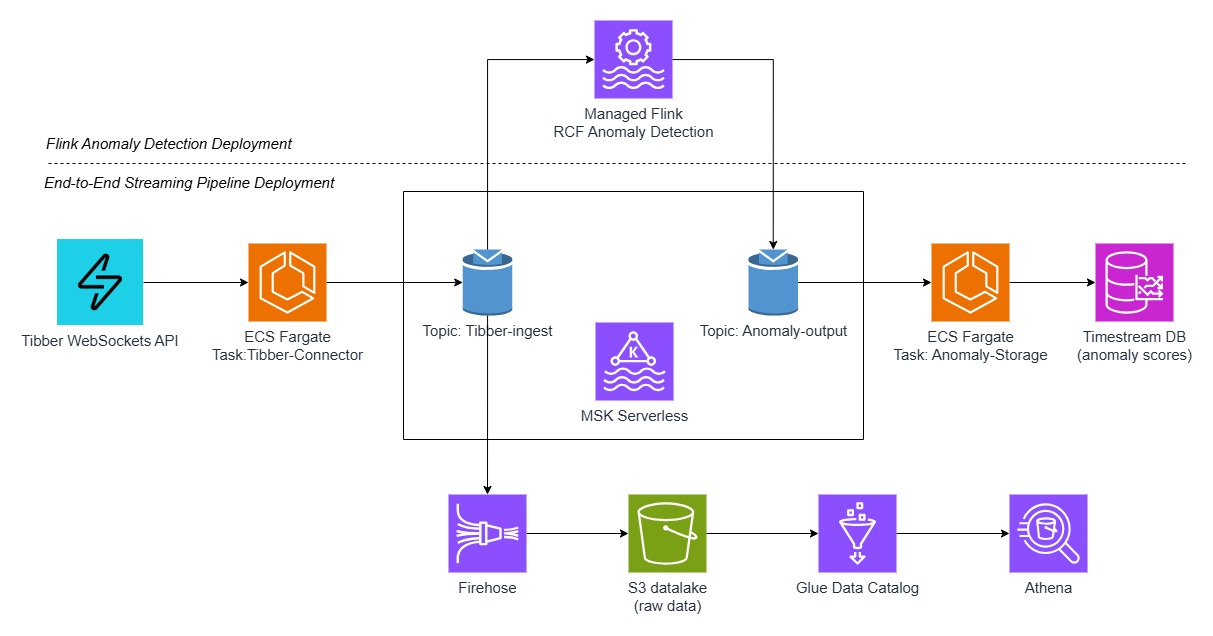

System Architecture

Component Technology Purpose
Tibber-Connector ECS Fargate Task (Python) Ingest data from Tibber WebSocket API
MSK Serverless Kafka Message streaming backbone
Managed Flink Anomaly Detection Managed Flink (Java) Real-time ML anomaly detection with Random Cut Forest (RCF)
Anomaly-Storage ECS Fargate Task + Timestream DB Time-series storage for anomaly scores
Firehose Kinesis Firehose Transform JSON → Parquet, save to s3 Datalake
S3 Datalake S3 + Glue Data Catalog + Athena Long-term storage, SQL analytics

How It Works

Here’s the end-to-end data flow:

  1. Data Ingestion: Tibber-Connector establishes a WebSocket connection to Tibber API and continuously receives real-time energy data from your Tibber Pulse device
  2. Message Streaming: Raw data is published to MSK Serverless (Kafka) for reliable message streaming
  3. Dual Processing Path:
    • Anomaly Detection: Managed Flink consumes messages from Kafka, applies Random Cut Forest algorithm to detect anomalies, and publishes anomaly scores back to Kafka
    • Raw Data Storage: Kinesis Firehose transforms JSON messages to Parquet format and stores them in S3 Datalake for long-term analytics
  4. Anomaly Storage: Anomaly-Storage service consumes anomaly scores from Kafka and writes them to Timestream DB for fast time-series queries
  5. Visualization: Grafana queries both Timestream DB (for anomaly scores) and Athena (for historical analysis) to create real-time dashboards

Normal vs Anomaly Detection

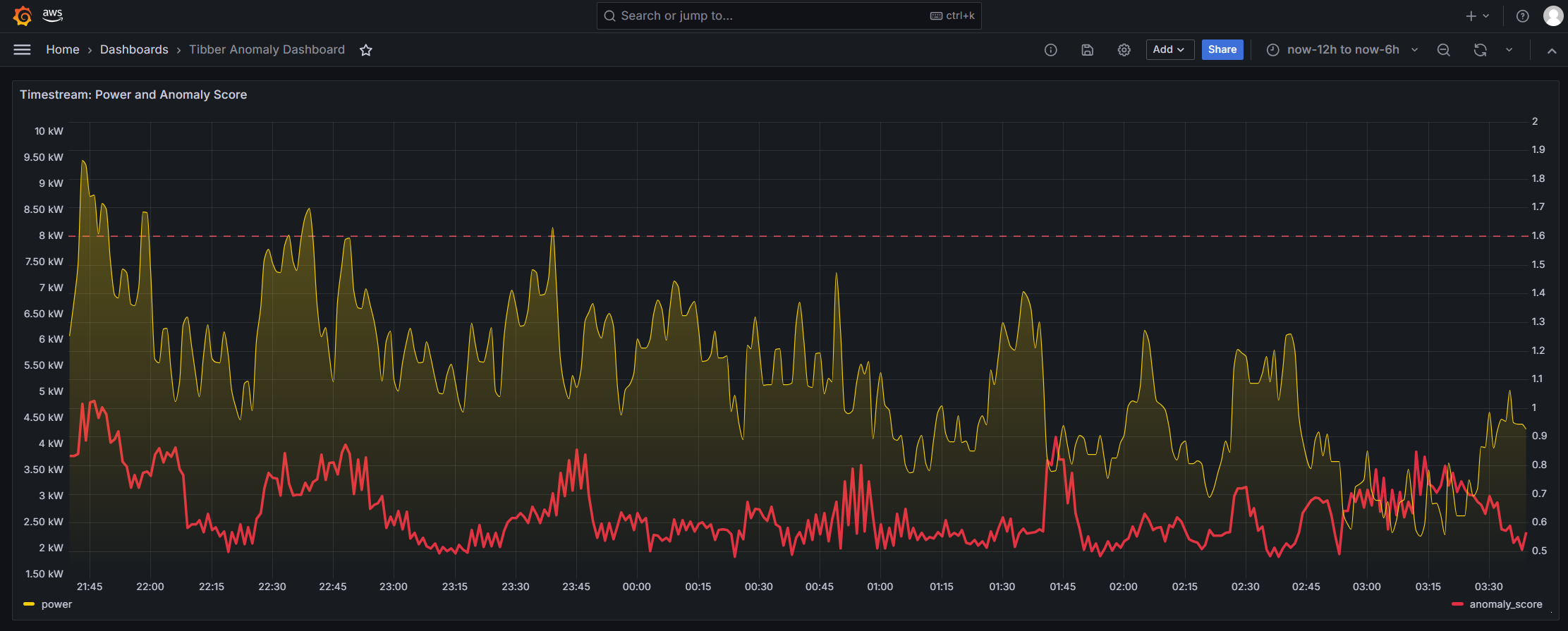

Normal Household Power Consumption

During normal operation, anomaly scores remain low.

Anomaly Detected - EV Charging Session

When unusual patterns occur (like EV charging sessions), the system automatically detects and flags them with elevated anomaly scores.

Multi-Metric Analysis

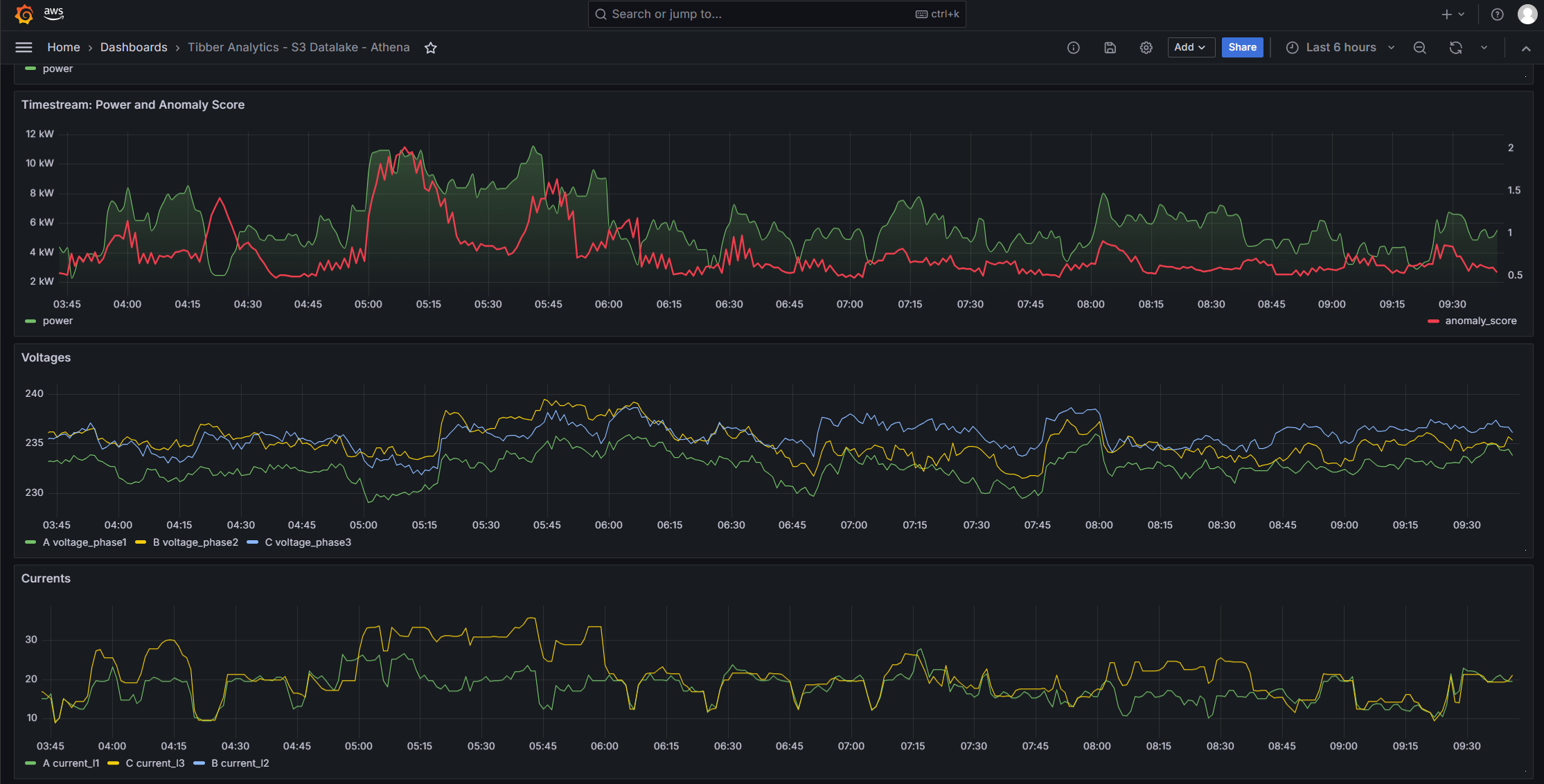

Comprehensive Dashboard with Multiple Metrics

Beyond power consumption, the platform tracks voltage and current to provide deeper context for detected anomalies.

Key Features

Real-Time Streaming

  • WebSocket connection to Tibber API
  • Automatic reconnection with exponential backoff
  • Data timeout watchdog for silent failures
  • UTC timestamp normalization
  • Random Cut Forest algorithm for unsupervised anomaly detection
  • Tumbling windows for aggregation
  • Detects: EV charging, appliance failures, unusual patterns
  • Tunable parameters for sensitivity adjustment

Data Storage

  • S3 Datalake: Parquet files, partitioned by time, queryable via Athena
  • Timestream DB: Time-series database for fast anomaly queries
  • Lifecycle policies for cost optimization

Source Code

All source code is available on GitHub: tibber-streaming-anomaly-detector

The repository includes:

  • Complete Infrastructure-as-Code (AWS CDK)
  • Python and Java source code
  • Local development setup with Docker Compose
  • Comprehensive documentation and deployment guides
